Product Overview
SPNYH02-X series is a compact, ultra-low-power Bluetooth® 5.0 module based on Nordic’s nRF52840 SoC, featuring a 64 MHz Arm® Cortex-M4F processor and an integrated NFC-A tag for simplified pairing and secure applications.
With the Skyworks SKY66403-11 PA front-end, it delivers superior RF performance, extended range, and higher transmit power. The module supports USB, operates up to 3.3 V, and offers +21 dBm TX power (PA bypass).
Fully certified and supporting multiple wireless protocols – BLE, Bluetooth Mesh, Thread, Zigbee, 802.15.4, proprietary 2.4 GHz, and NFC-A it minimizes development risk and speeds time-to-market
The SPNYH02-X series includes two models, differing in antenna design
- SPNYH02-C
- SPNYH02-E
Product Classification
| MODEL No. | Antenna | Module | |
|---|---|---|---|
| SoC | Flash / RAM | ||
| SPNYH02-C | Chip Antenna | nRF52840-QIAA | 1MB/256kB |
| SPNYH02-E | u.FL Connector | nRF52840-QIAA | 1MB/256kB |
MODEL No.

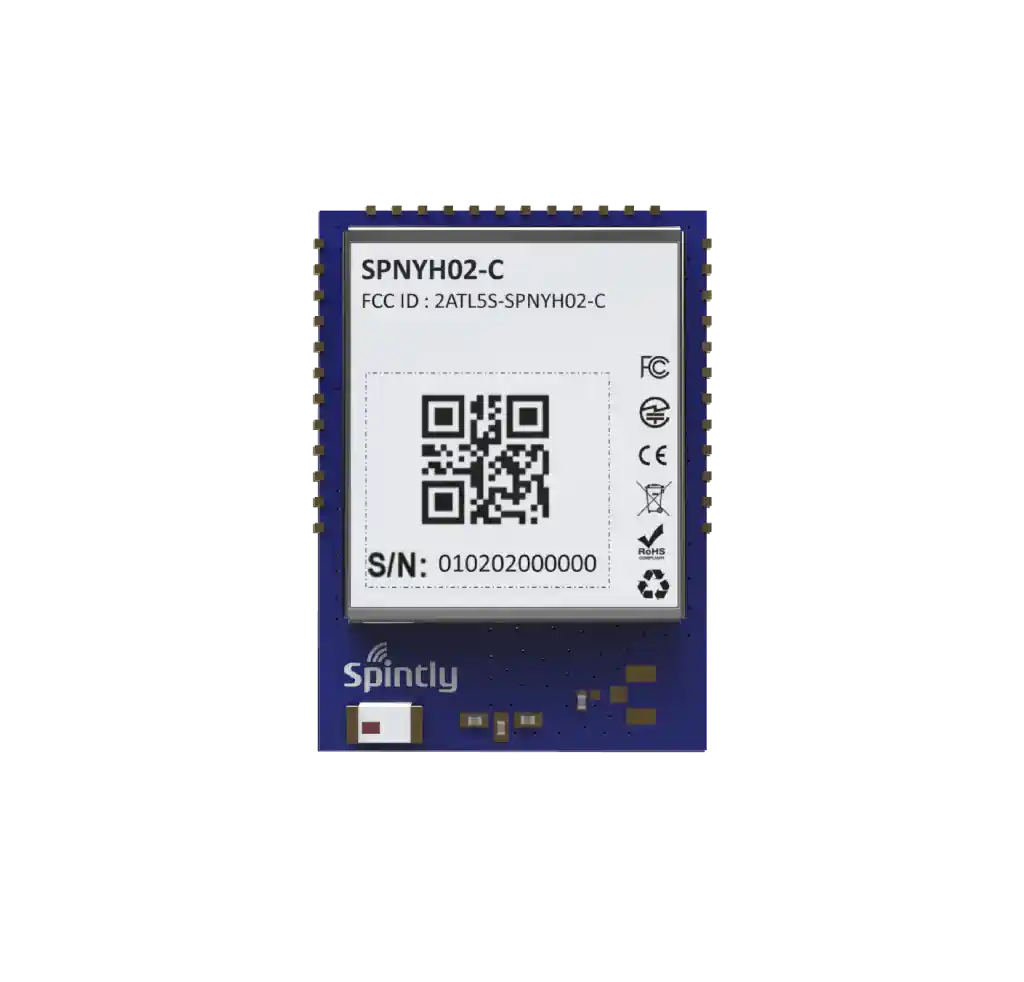

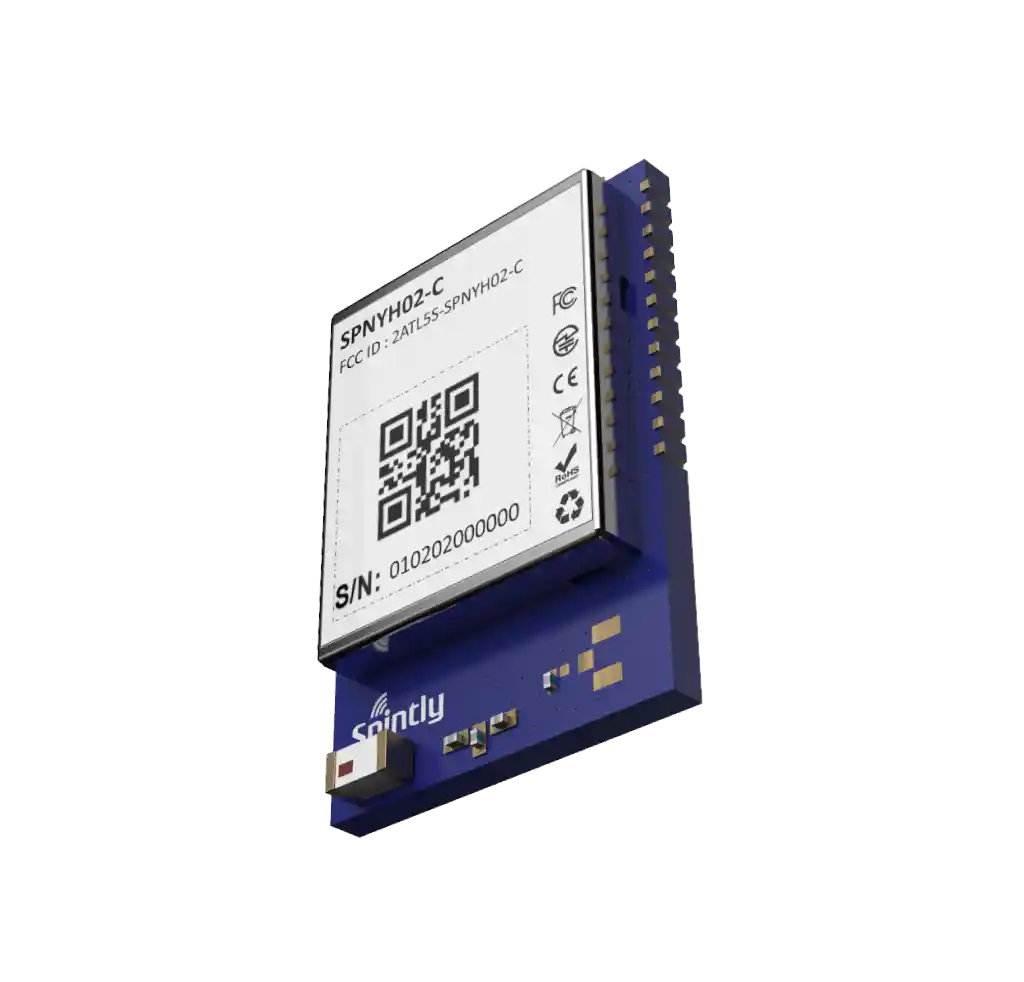

SPNYH02-C

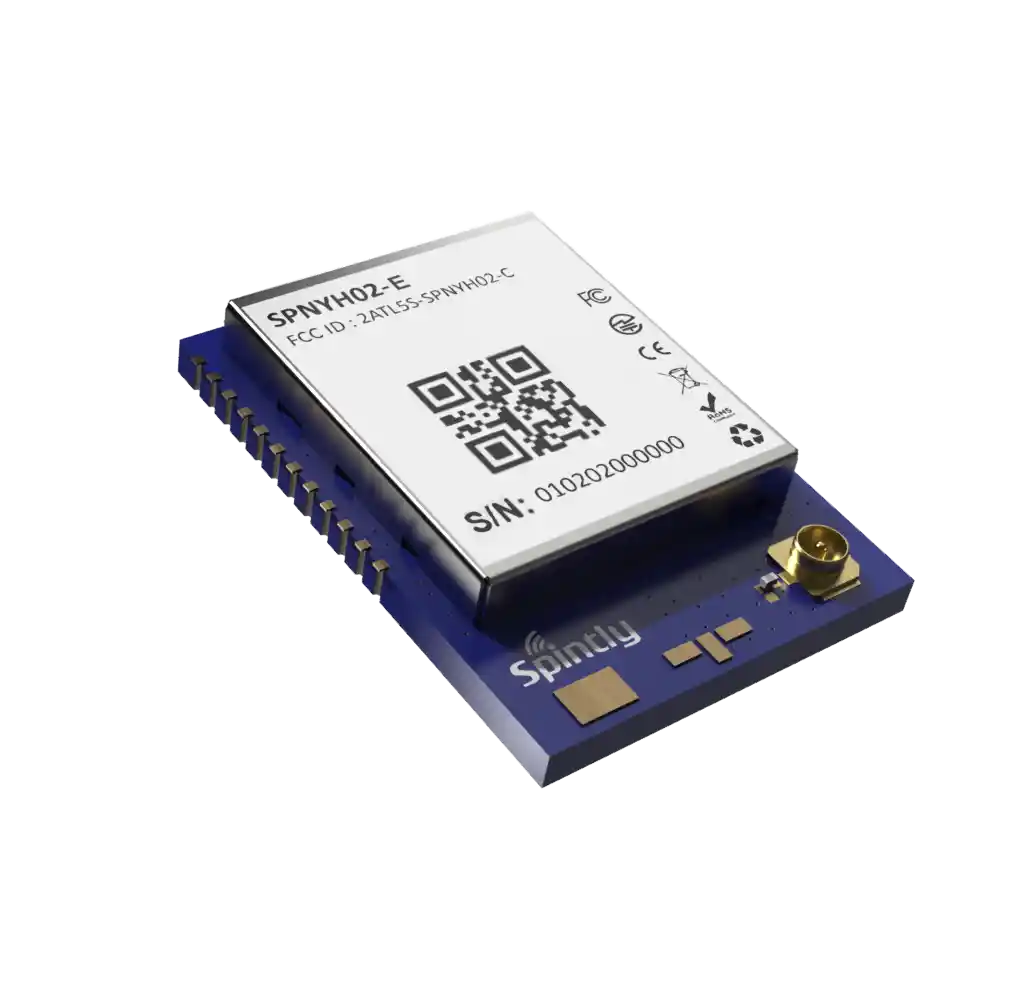

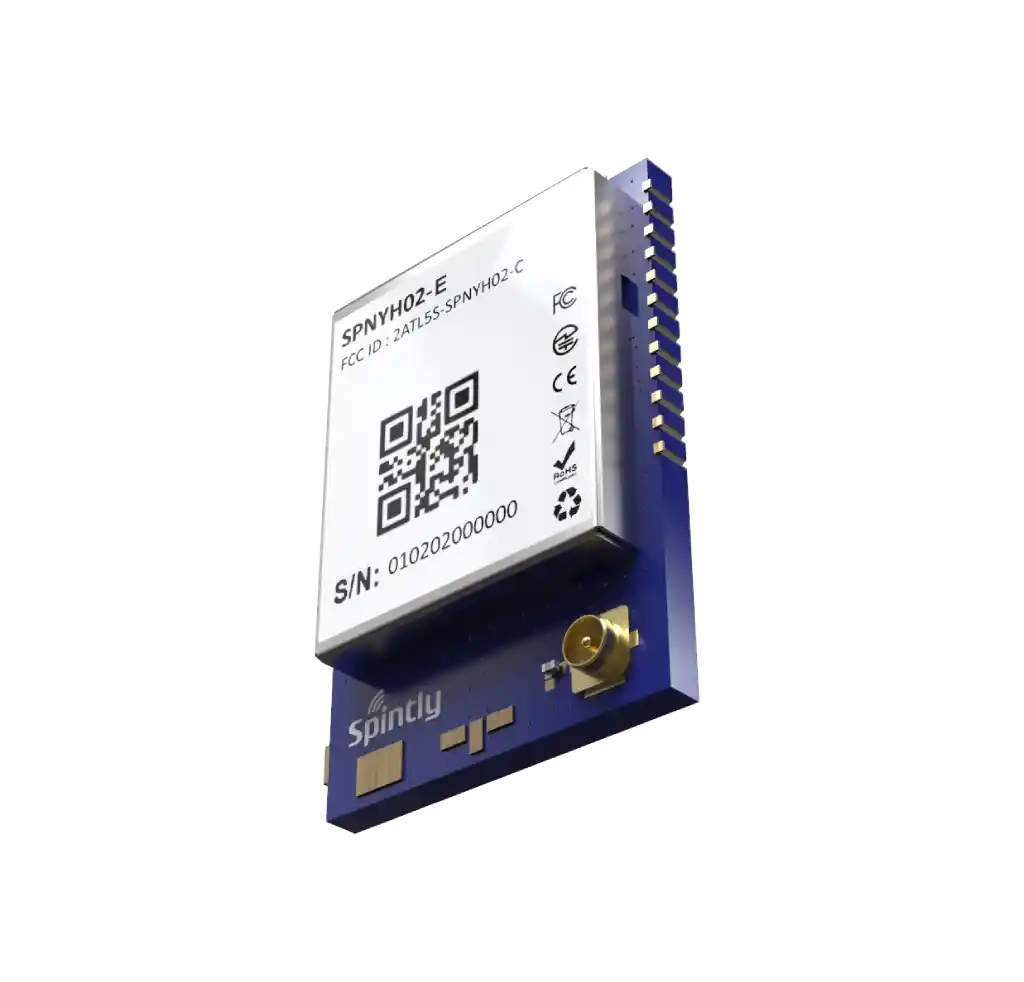

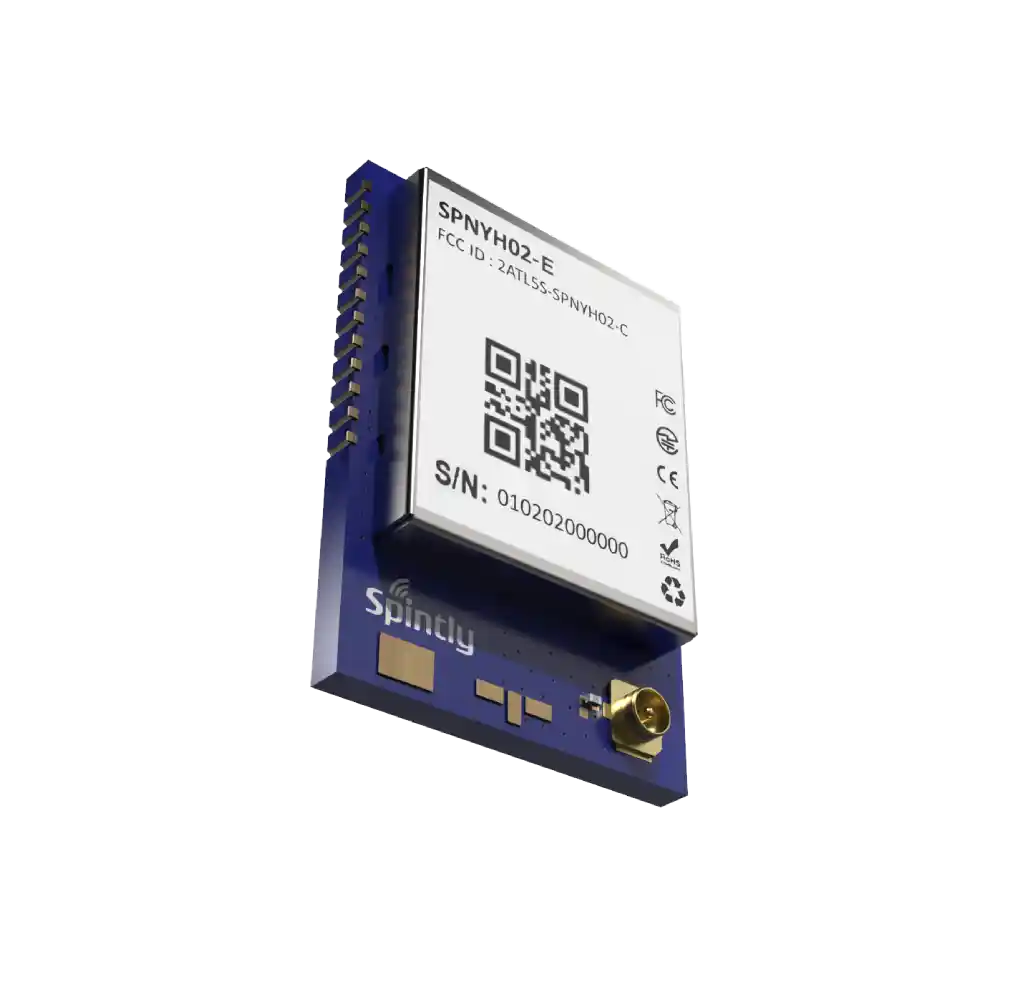

SPNYH02-E
Antenna
Chip Antenna (SPNYH02-C)
u.FL Connector (SPNYH02-E)
Module
SoC
NRF52840-QIAA (SPNYH02-C)
nRF52840-QIAA (SPNYH02-E)
Flash / RAM
1MB/256kB (SPNYH02-C)
1MB/256kB (SPNYH02-E)
Applications
- Access Control
- Smart door locks and keyless entry systems
- BLE-based readers for mobile credential access
- Smart Home
- Smart lighting and energy management systems
- HVAC controllers and environmental sensors
- Automotive
- Passive keyless entry (PKE) and start systems
- Vehicle tracking and diagnostic systems
- Advanced Wearables
- Health and fitness monitoring devices
- Wireless payment-enabled devices
