INSTALLATION GUIDE :
INSTALLATION GUIDE
NUOS-1
Model No : SNU-042

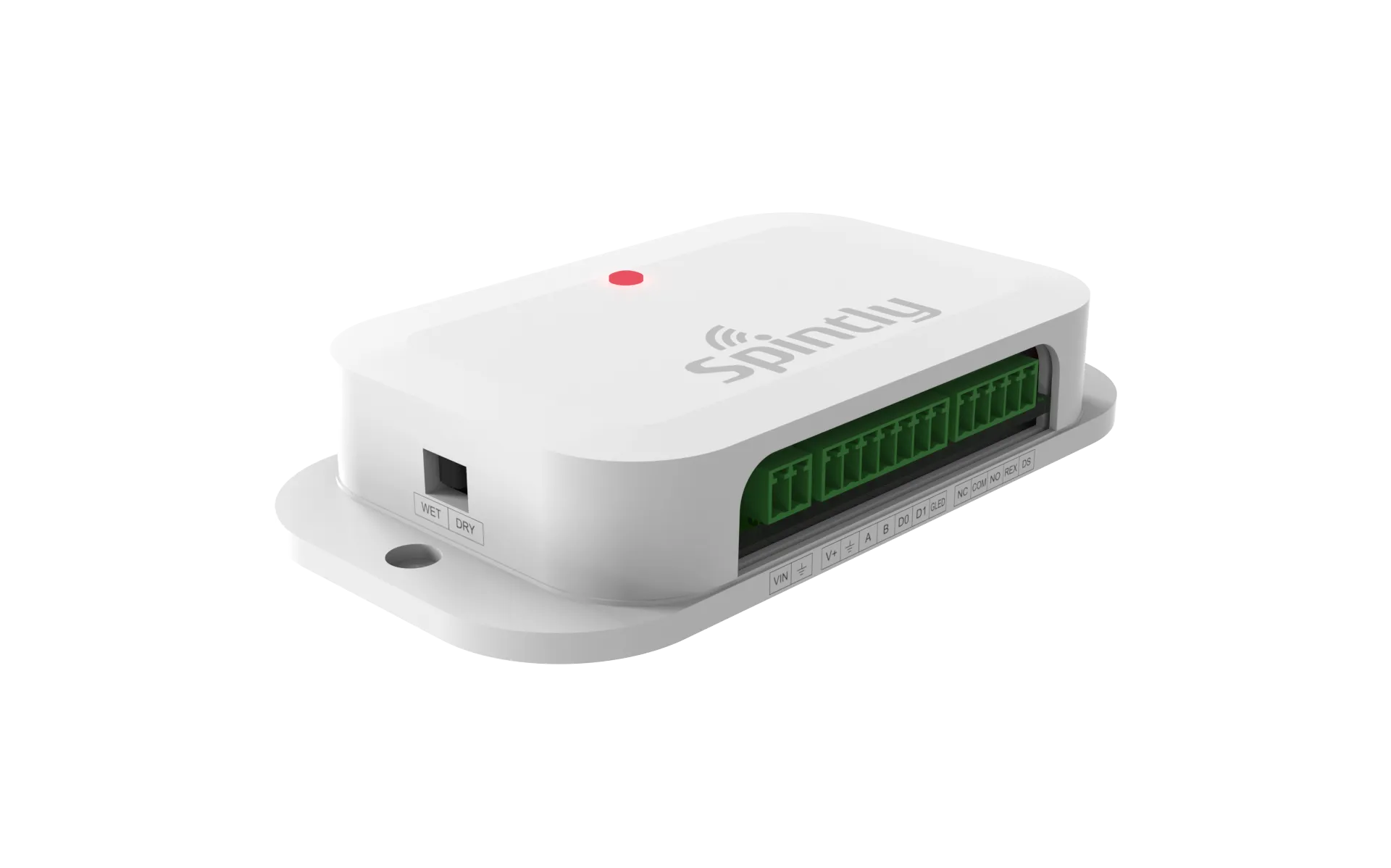

NUOS-1 is a single door controller.
It has native OSDP/Wiegand support which provides the highest level of security and reliability. It is designed to be mounted on the secured side of a door, and configurable to make all access control decisions.
NUOS-1 is a single door controller.
It has native OSDP/Wiegand support which provides the highest level of security and reliability. It is designed to be mounted on the secured side of a door, and configurable to make all access control decisions.
1. Product Features and Specifications
1.1. Features
- NUOS-1 supports 2 modes of configuration
1. Standalone Controller mode
2. Controller + Reader mode - Compact design
- BLE Mesh connectivity to Gateway
- Selectable Dry/Wet relay contact
- Cloud based access management
- Local storage of configurations
- Over-the-air firmware update support
1.2. Electrical Specifications
- Power source: 12V/24V DC Input
- Power consumption: 2.4W max at 12V
2. Mechanical Dimensions
- Length = 124.5 mm
- Width = 67.5 mm
- Depth = 22.5 mm
3. Mounting Instructions :

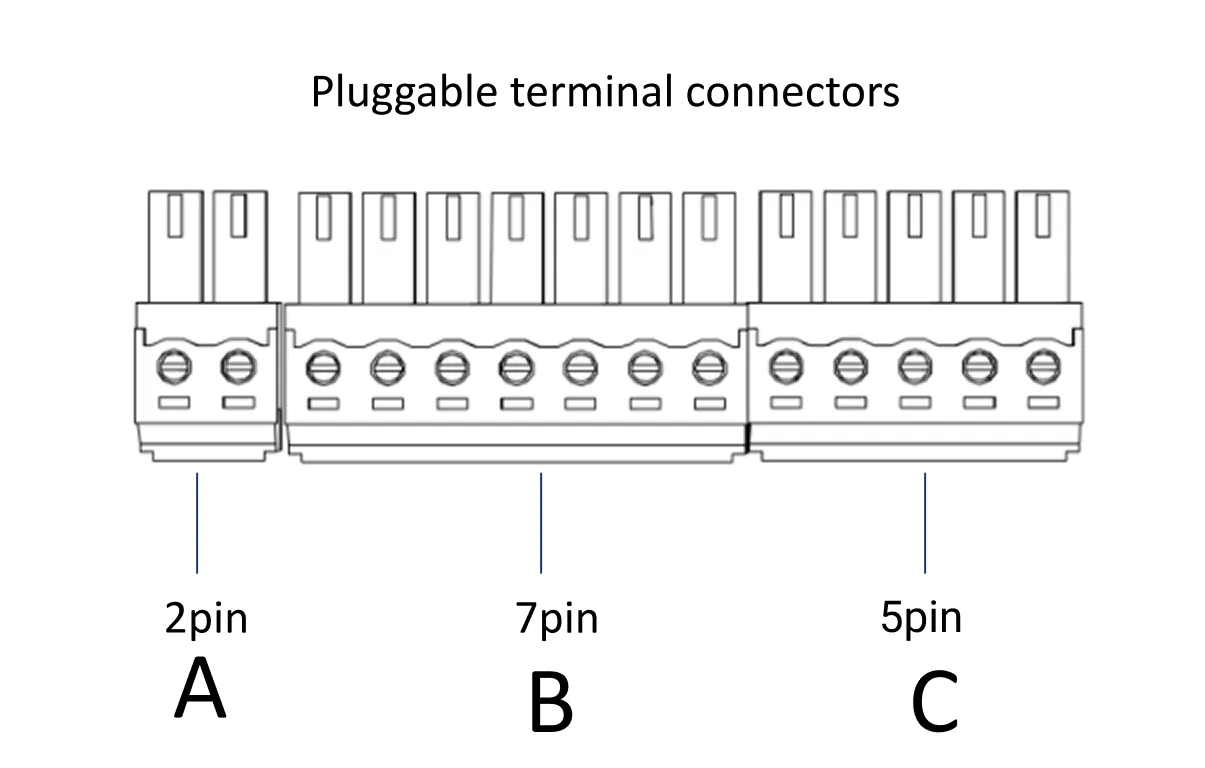

Step 1. Pick out the connectors (2pin-A, 4pin-B, 6pin-C) provided in the box as shown in below image
Step 2. Connection diagram and configurations supported:
It can support 2 modes of configuration. The connection of wires will differ based on the selected configuration.
3.1. Configuration 1 : Standalone Spintly Controller

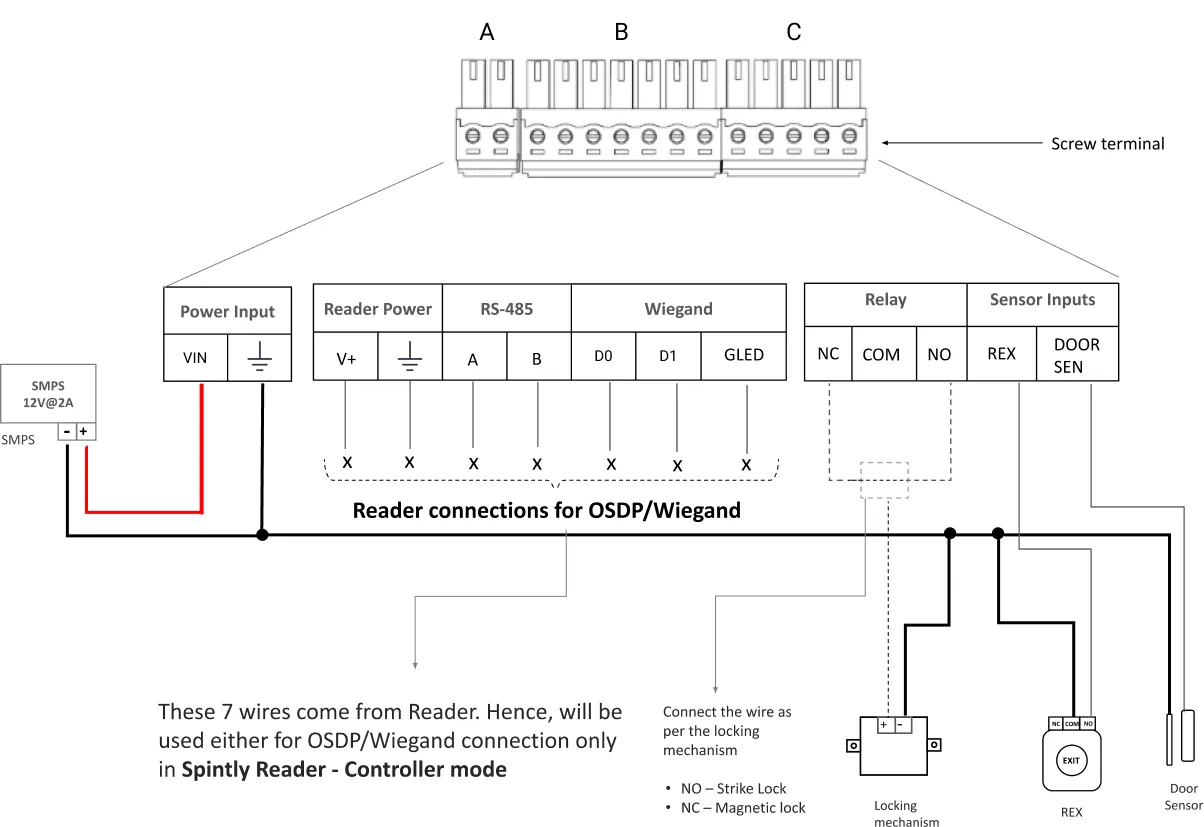

To ensure proper setup, follow the connection diagram (Fig 3.1.1 below) and screw in the wires into A, B, C (using screw driver provided in box)
Note : Observe the orientation of A, B and C while screwing in the wires. The screw terminal should be facing the user.
Fig 3.1.1
3.2. Configuration 2 : Spintly Reader with OSDP controller
Installation type: Reader + controller
Controller side – Toggle the switch to WET position to enable lock power on the common terminal of relay (as shown above in Fig 3.2.1)
Reader Side – There are a total of 4 lines between the reader and the OSDP controller
Power wires – V+ and GND
Communication wires – Connect A and B lines of the reader to the respective A and B OSDP lines on the controller side
Refer reader manual for more details.
The locking mechanism (Strike lock or Magnetic lock) should be connected to the Controller
The sensor inputs (REX and Door sensor) should be connected to the controller

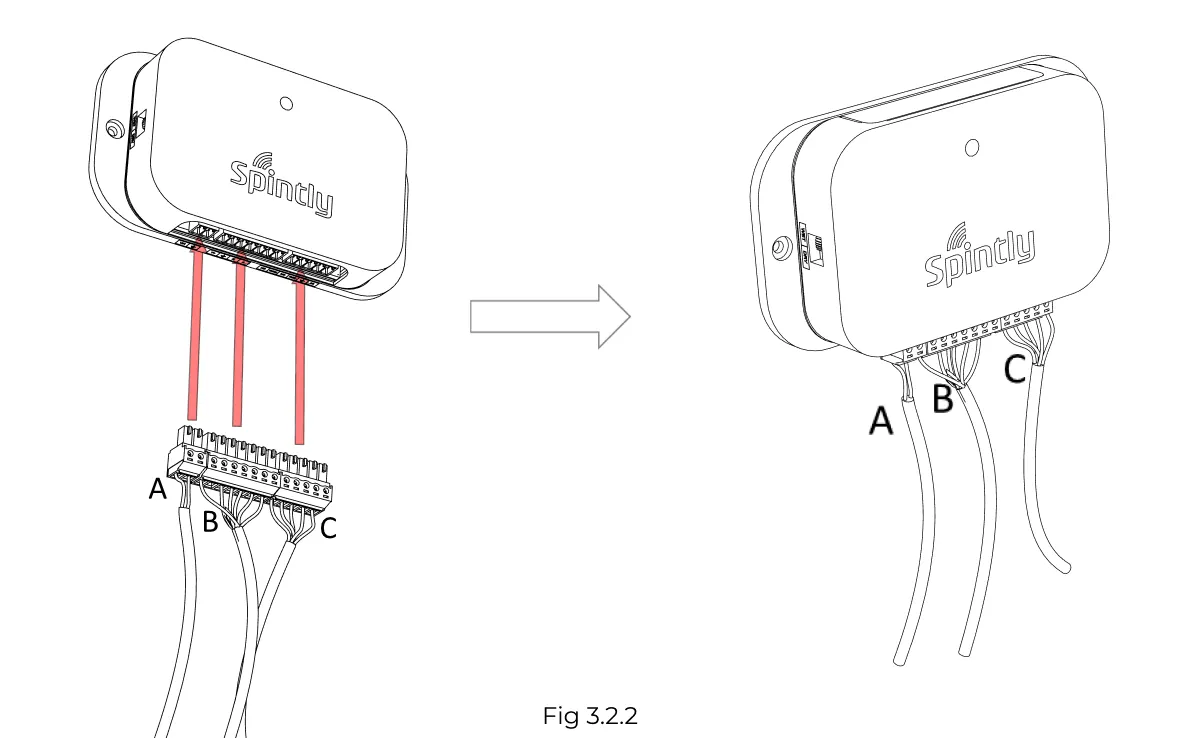

Step 3. Plug in the connectors A, B and C as shown in the below image
Step 4. Mounting of device on wall
Pre-drill the mounting locations using “Drill Template” provided in the box. Mount the unit on the wall with the help of wall plugs and screws (2 qty) as shown above.
