INSTALLATION GUIDE :
Spintly
Face Recognition
Model No : FR-031
Spintly FR (Face Recognition) is a versatile solution that simplifies access with a quick face scan. It offers flexibility with multiple configuration options, tailored to suit specific requirements – from standalone attendance tracking to advanced access control with multiple authentication methods.
1. Product Features and Specifications
1.1. Features
- Premium Aesthetics
- Camera 32 MP (wide, f/2.2)
- Liveness Detection
- Rapid and Accurate Authentication
- Cloud based access management

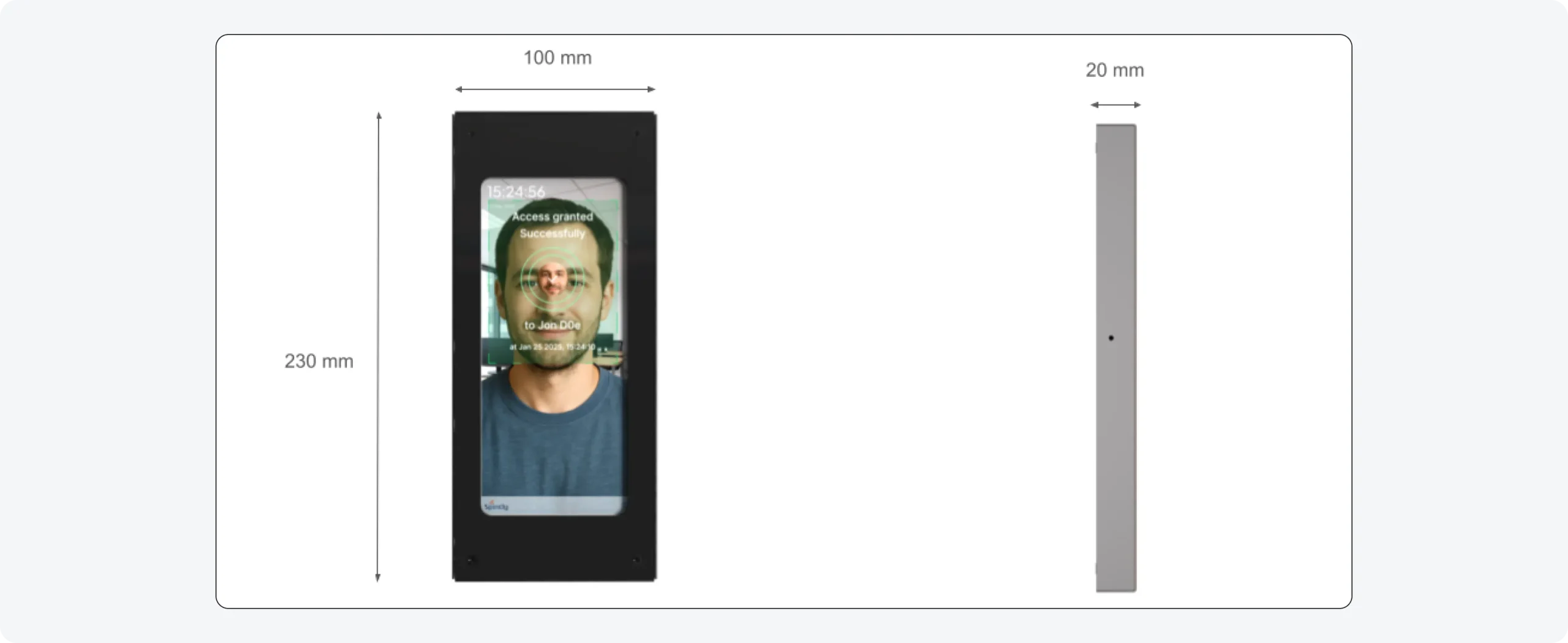

2. Mechanical Dimensions
3. Mounting Instructions :

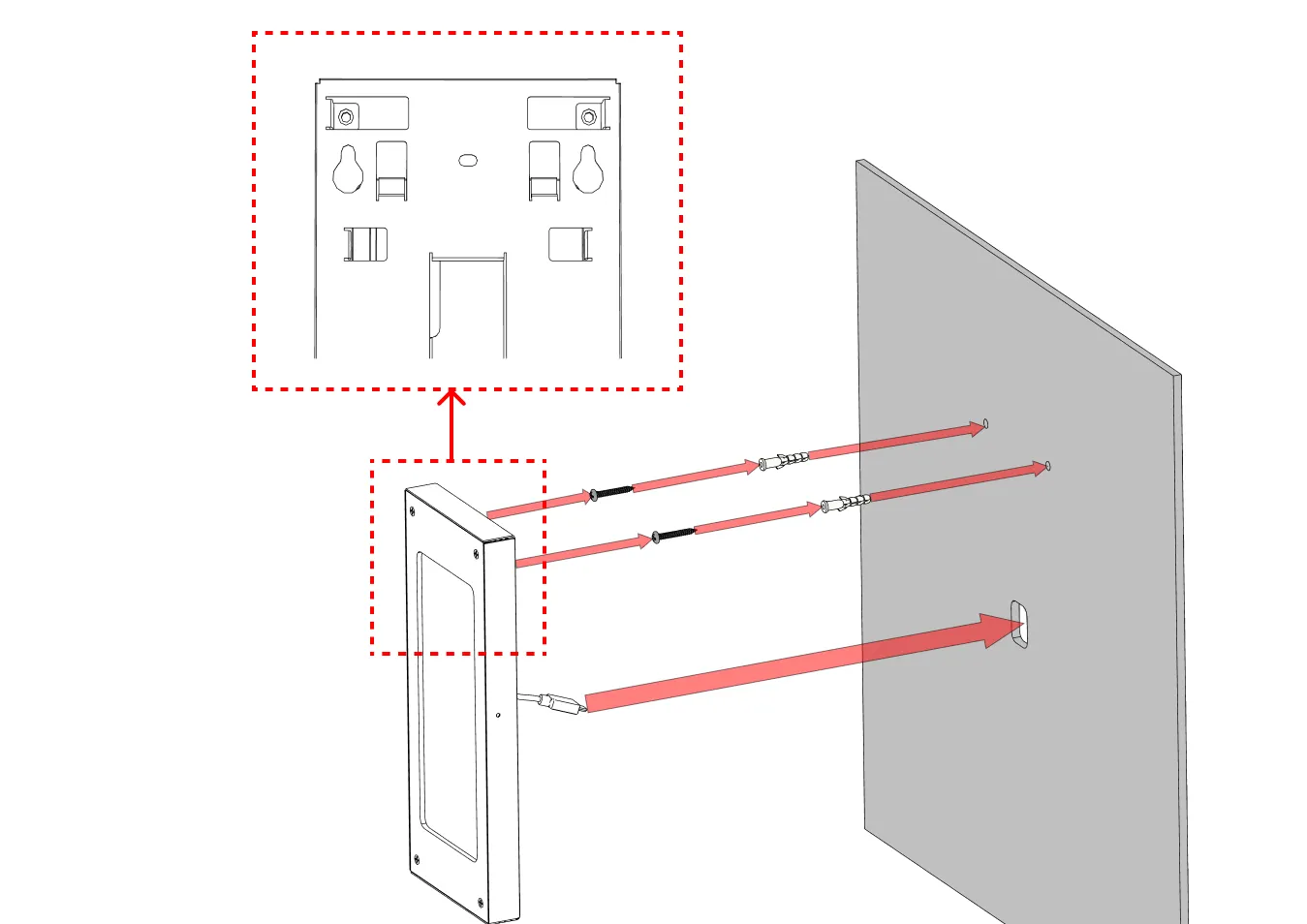

3.1. Wall Mounting
Step 1. Pre-drill the mounting locations using Drill Template provided in the box.
Step 2. Pass the USB cable though the opening in the wall
Step 3. Secure the unit on the wall with the help of wall plugs and screws (ISO #6, 25mmL, PAN+, 2 qty) as shown above.

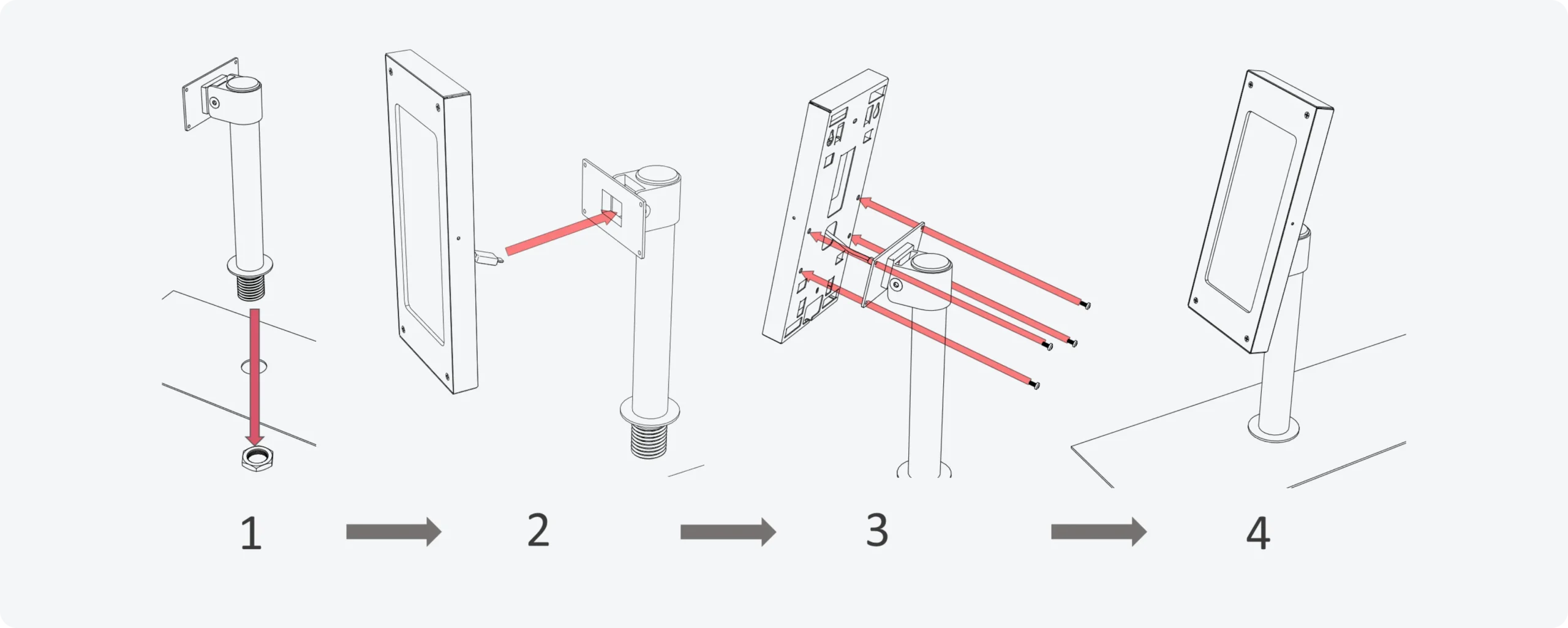

3.2. Flap barrier mounting
Step 1. Screw the metal rod to the barrier (1)
Step 2. Pass the USB cable though the opening in the rod (2)
Step 3. Screw the FR to the rod with the help of 4 screws (3)
