INSTALLATION GUIDE :
INSTALLATION GUIDE
MESH-IO
Model No : SMI-01
The Spintly Mesh-IO provides a scalable approach to increase the range of your BLE mesh-enabled IoT network. It is capable of interfacing with Fire Alarm panels, remote sensors monitoring via additional I/O support, providing a BLE Mesh communication extension to legacy hardware.
The Spintly Mesh-IO provides a scalable approach to increase the range of your BLE mesh-enabled IoT network. It is capable of interfacing with Fire Alarm panels, remote sensors monitoring via additional I/O support, providing a BLE Mesh communication extension to legacy hardware.
1. Product Features and Specifications
1.1. Features
- BLE Mesh connectivity to Gateway
- BLE Mesh Networking
- Wide Input operating voltage
- BLE Mesh range extension
- Integration with 3rd party devices
1.2. Electrical Specifications
- Voltage ratings : 5V DC
- Power consumption : 0.75mW max at 5V
2. Mechanical Dimensions
3. Mounting Instructions :

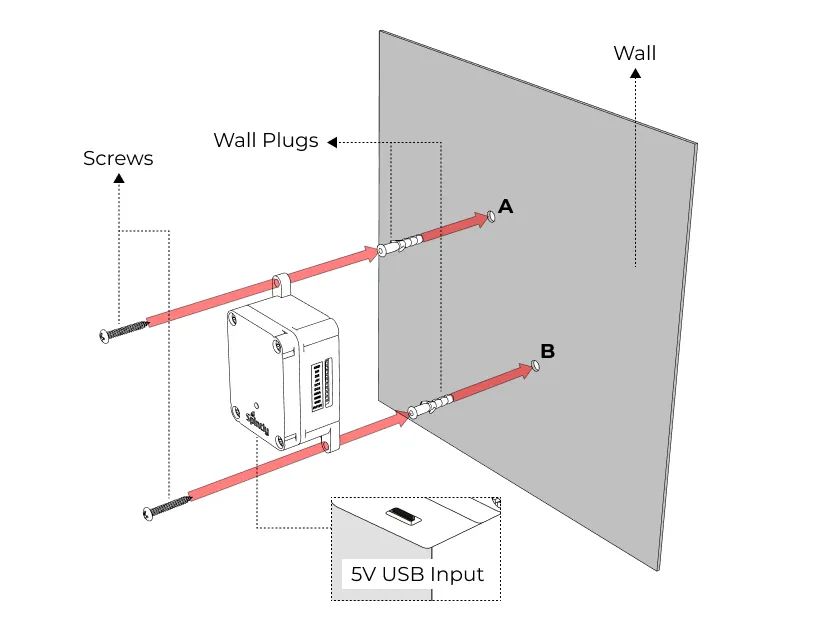

Step 1. Mounting of device on wall
- Pre-drill the mounting locations (A and B).
- Mount it on the wall with the help of wall plugs and screws (2 qty) as shown below.
Fig 3.1
Step 2. Power the device using the adapter provided in the box
4. Mesh IO Pinout:
Spintly Mesh IO can work with a variety of third-party hardware. This may include fire alarm panels, beacons, remote sensors and other IoT devices.
- Digital Inputs : 4
- Analog Inputs : 2
- Digital Outputs : 4
Pin Description:
