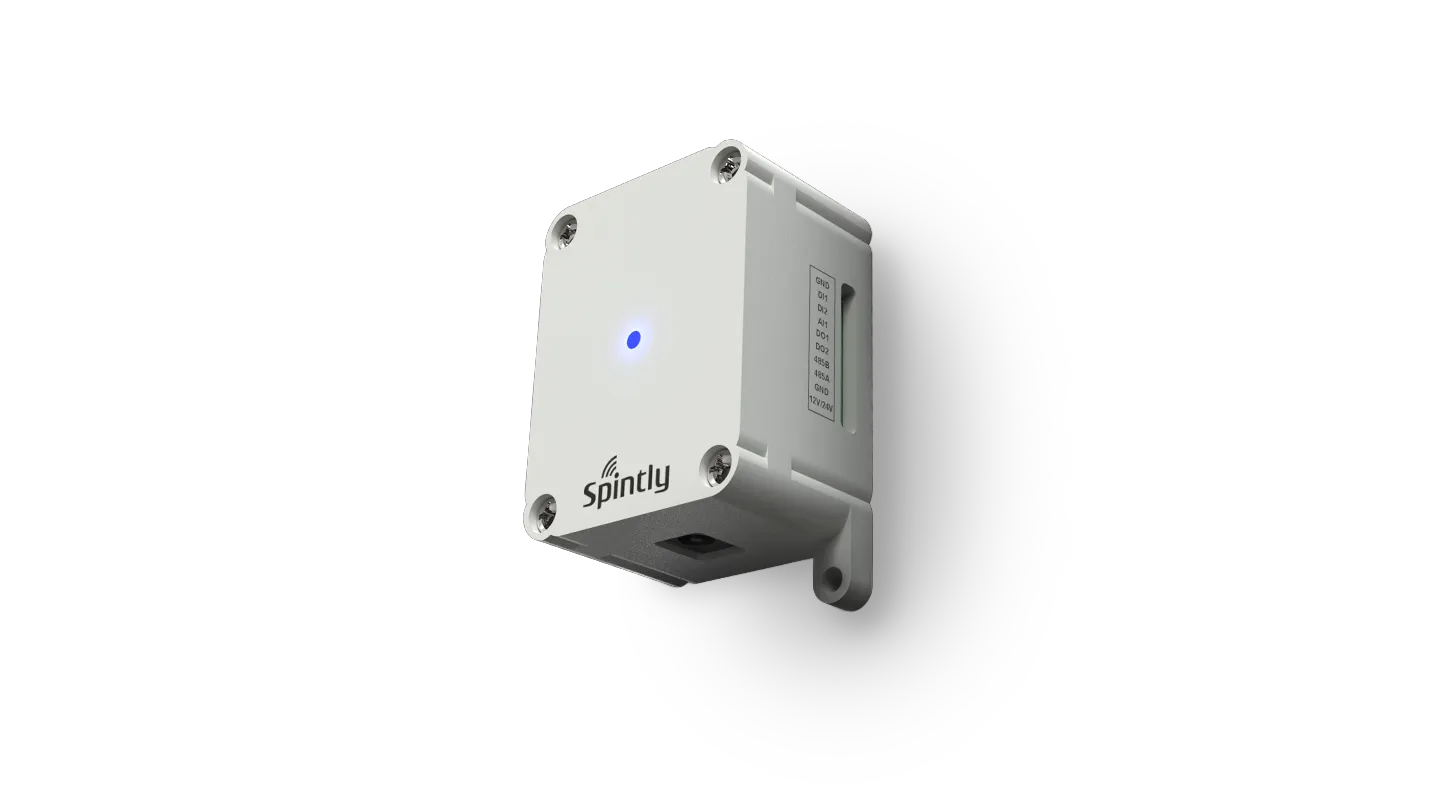

MESH-IO
Model No : SMI-02
Mesh-IO provides a scalable approach to increase the range of your BLE mesh-enabled IoT network. It is capable of interfacing with Fire Alarm panels, remote sensors monitoring via additional I/O support, providing a BLE Mesh communication extension to legacy hardware.
Mesh-IO provides a scalable approach to increase the range of your BLE mesh-enabled IoT network. It is capable of interfacing with Fire Alarm panels, remote sensors monitoring via additional I/O support, providing a BLE Mesh communication extension to legacy hardware.
1. Product Features and Specifications
1.1. Features
- BLE Mesh connectivity to Gateway
- BLE Mesh Networking
- Wide Input Operating Voltage
- BLE Mesh Range Extension
- Integration With 3rd Party Devices
- Card Based Access
1.2. Electrical Specifications
- Voltage ratings : 12V/24V DC
- Power consumption : 2.4W max at 12V
2. Mechanical Dimensions
3. Mounting Instructions :

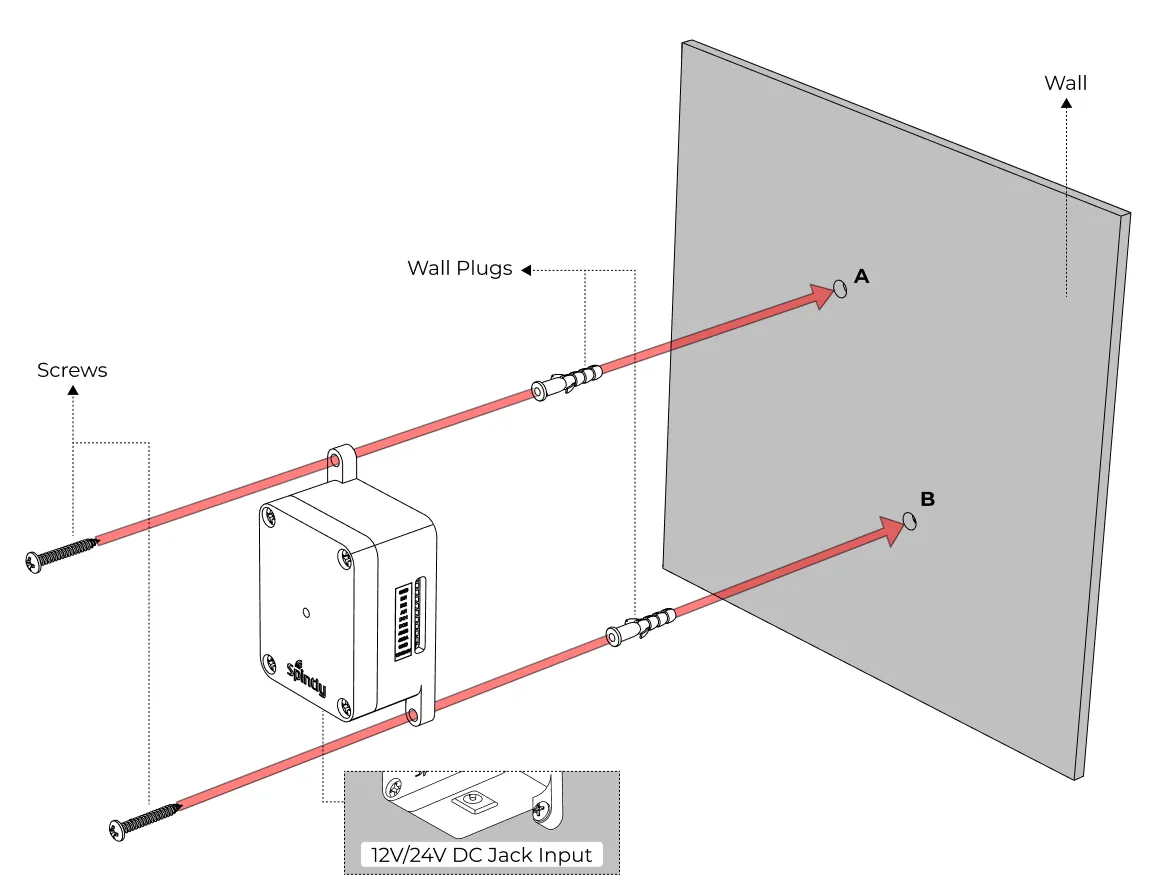

Step 1. Mounting of device on wall
- Pre-drill the mounting locations (A and B) using drill template provided in the box
- Mount it on the wall with the help of wall plugs and screws (4 qty) as shown below.
Fig 3.1
Step 2. Power the device using the 12V/24V adapter
4. Mesh IO Pinout:
Spintly Mesh IO can work with a variety of third-party hardware. This may include fire alarm panels, beacons, remote sensors and other IoT devices.
- Digital Inputs : 4
- Analog Inputs : 2
- Digital Outputs : 4
Pin Description:
